CANON

4K UHD Reference Displays

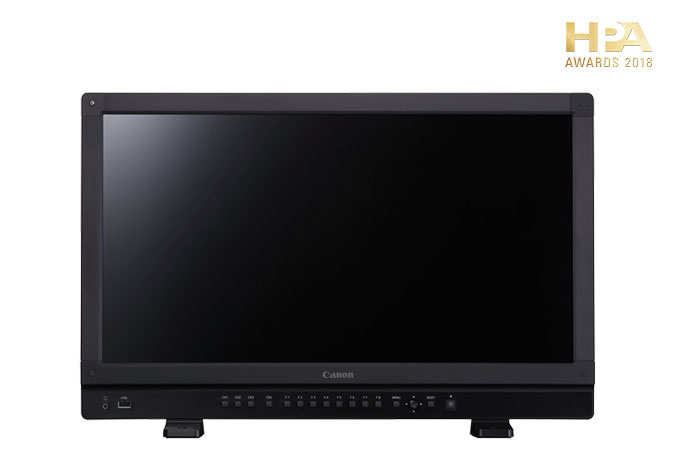

DP-V2421


Este es el Modelo "Bandera" de los Reference Display 4K de Canon. Alta Luminancia, HDR/4K. Cualifica como Dolby Vision mastering monitor, soporta curva de gamma SMPTE ST 2084/ HLD / broadcast HDR standards. Esta equipado con terminales 12G-SDI.

Presupuestar

CARACTERISTICAS


Innovador diseño de RGB LED Backlight con panel de 10-bit IPS permitiendo un mayor wide-angle de vision. Trabaja con una gran variedad de workflows de camaras de otras marcas: tales como ALEXA, Sony, etc. Construido en Aluminio ofrece diseño con gran rigidez, fortaleza y portabilidad. El DP-V2421 es un Producto Compatible con los Stardard ACES.




ESPECIFICACIONES

Specifications



Panel Type

IPS LCD panel

Screen Size

24 inch (61.1 cm)

Aspect Ratio

17:9

Resolution

4096 x 2160 (8.8 megapixels)

Active display area

Approx. 21.2 x 11.2 in. / 540.7 x 285.1 mm

Pixel Pitch

132 µm / 193 ppi

Panel Driver

1024 gradations 10 bits for each RGB color

Brightness (Standard)

100 cd/m2

Viewing Angle (Up, Down, Left, Right)

89° (contrast ratio 10:1 or higher)

Surface Treatment

Anti glare coating

Backlight Type

RGB LED, direct down type

Power

Rated voltage: 100 - 240 V AC
Rated Frequency: 50 / 60 Hz

Power Consumption

At maximum load (including change in brightness through aging): Approx. 510 W
At factory shipment: Approx. 180 W

Environmental Conditions

Operating
Temperature and humidity: 0 to 40 °C (32 - 104 °F) (20 - 85 % RH no condensation), recommended: 15 - 30 °C (59 - 86 °F)
Pressure: 700 - 1060 hPa
Storage / Transporting
Temperature and humidity:
-20 - 40 °C (-4 - 104 °F), (20 - 85 % RH no condensation)
41 - 60 °C (105 - 140 °F), (20 - 30 % RH no condensation)

Pressure: 700 - 1060 hPa

Dimensions (Width x Height x Depth)

With stand: Approx. 594 x 399 x 235 mm (23.4 x 15.7 x 9.3 in.)
Display unit only, without protruding parts: Approx. 594 x 378 x 195 mm (23.4 x 14.9 x 7.7 in.)

Weight

Approx. 19 kg (41.8 lb)

Mounting Hole Pitch

VESA standard 200 x 100 mm (7.9 x 3.9 in)

12G/3G/HD-SDI

4 (system) BNC (75Ω) receptacle terminal

Display Port

HDMI
1(1 system) Type A terminal (4K 60P Support)
Copy protection: HDCP 2.2

12G/3G/HD-SDI

4 (1 pass-thru 1 system)

Headphone

1 stereo mini-jack. Supported impedance: 32-64Ω

USB

1 USB A receptacle terminal. Universal Serial Bus Specification Revision 2.0 compliant LS (Low Speed) / FS (Full Speed) / HS (High Speed) mode compatible. Enhanced Host Controller Interface Specification for Universal Serial Bus Revision 1.0 compliant.

LAN

1 RJ-45 terminal IEEE802.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant

Remote
